STF32NM50N - N-channel MOSFET

Description

These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology.

This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.

Features

  • TAB Order codes STB32NM50N STF32NM50N STP32NM50N STW32NM50N.
  • VDS RDS(on) max. ID PTOT 190 W 35 W 190 W 190 W 2 3 1 3 1 2 D²PAK TAB 500 V 0.13 Ω TO-220FP 22 A 100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-220 3 1 2 2 1 3 TO-247.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

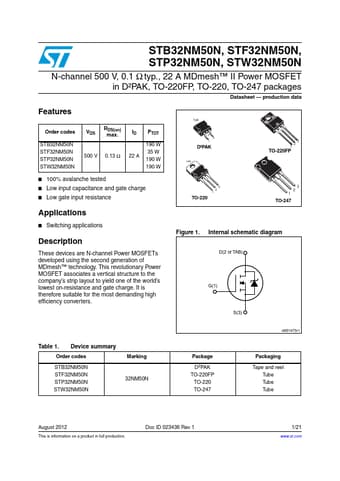

STB32NM50N, STF32NM50N, STP32NM50N, STW32NM50N N-channel 500 V, 0.1 Ω typ., 22 A MDmesh™ II Power MOSFET in D²PAK, TO-220FP, TO-220, TO-247 packages Datasheet — production data Features TAB Order codes STB32NM50N STF32NM50N STP32NM50N STW32NM50N ■ ■ ■ VDS RDS(on) max. ID PTOT 190 W 35 W 190 W 190 W 2 3 1 3 1 2 D²PAK TAB 500 V 0.13 Ω TO-220FP 22 A 100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-220 3 1 2 2 1 3 TO-247 Applications ■ Switching applications Figure 1. Internal schematic diagram Description These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology.
