STF40N60M2 - N-CHANNEL POWER MOSFET

STF40N60M2 Description

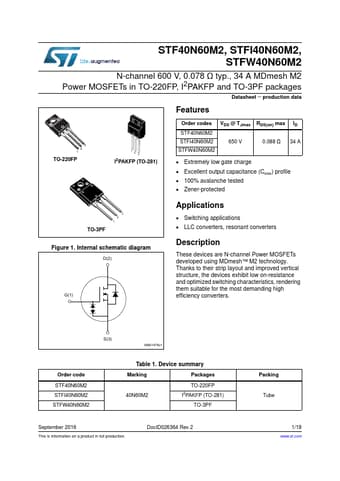

STF40N60M2, STFI40N60M2, STFW40N60M2 N-channel 600 V, 0.078 Ω typ., 34 A MDmesh M2 Power MOSFETs in TO-220FP, I2PAKFP and TO-3PF packages Datasheet These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology.

STF40N60M2 Features

* 3 2 1 TO-220FP 12 3 I2PAKFP (TO-281)  TO-3PF    Order codes STF40N60M2 STFI40N60M2 STFW40N60M2 VDS @ TJmax 650 V RDS(on) max ID 0.088 Ω 34 A
* Extremely low gate charge
* Excellent output capacitance (Coss) profile
* 100% avalanche tested
* Zener-protecte

STF40N60M2 Applications

* Switching applications
* LLC converters, resonant converters Figure 1. Internal schematic diagram '
