STF40N65M2 Datasheet - STMicroelectronics

N-channel Power MOSFET

STF40N65M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. S(3).

STF40N65M2 Datasheet (326.15 KB)

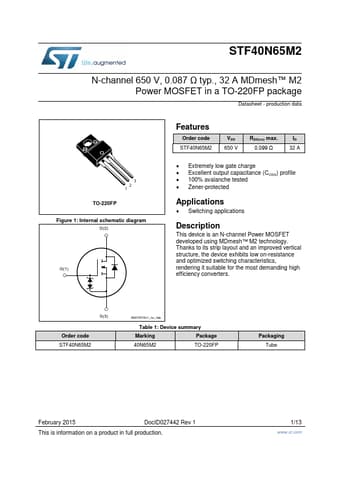

STF40N65M2 Datasheet Preview — Preview of STF40N65M2 PDF

Datasheet Details

Part number:

STF40N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

326.15 KB

Description:

N-channel power mosfet.
STF40N65M2 N-channel 650 V, 0.087 Ω typ., 32 A MDmesh™ M2 Power MOSFET in a TO-220FP package Datasheet - production data 3 12 TO-220FP Figure 1: Int.
