STF4080C Datasheet - SMC Diode

STF4080C, SCHOTTKY RECTIFIER

Technical Data Data Sheet N1755, Rev.B STF4080C SCHOTTKY RECTIFIER STF4080C ITO-220AB .

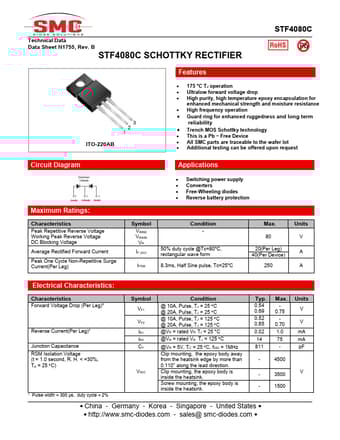

datasheet Preview Page 1 from Datasheet4u.com

STF4080C-SMCDiode.pdf

STF4080C Datasheet Preview — Preview of STF4080C PDF

Datasheet Details

Part number:

STF4080C

Manufacturer:

SMC Diode

File Size:

815.71 KB

Description:

SCHOTTKY RECTIFIER

Features

* 175 °C TJ operation
* Ultralow forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Trench MOS Schottky t

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Symbol VRRM VRWM VR IF (AV) IFSM Condition - 50% duty cycle @Tc=80°C, rectangular wave form 8.3ms, Half Sine pulse, Tc=25°C Max. Units 80 V 20(Per Leg) 40(Per Device) 250 A A Electrical
