STF6N65M2 Datasheet - STMicroelectronics

STF6N65M2 - N-channel Power MOSFET

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. AM.

STF6N65M2 Features

* Order codes STF6N65M2 STP6N65M2 STU6N65M2 VDS RDS(on) max ID 650 V 1.35 Ω 4A

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected Figure 1. Internal schematic diagram , TAB Applications

STF6N65M2-STMicroelectronics.pdf

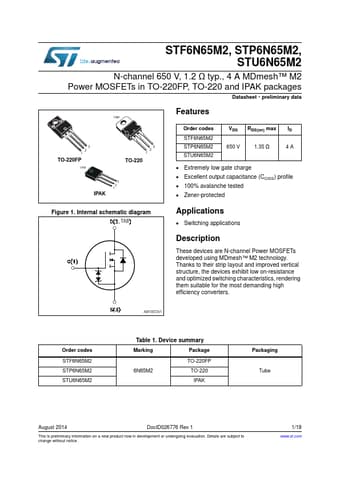

Preview of STF6N65M2 PDF
STF6N65M2 Datasheet Preview Page 2 STF6N65M2 Datasheet Preview Page 3

Datasheet Details

Part number:

STF6N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

707.97 KB

Description:

N-channel power mosfet.
