STF7N80K5 - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

STF7N80K5 Datasheet Preview — Preview of STF7N80K5 PDF

Datasheet Details

Part number	STF7N80K5
Manufacturer	STMicroelectronics
File Size	604.71 KB
Description	N-channel Power MOSFET
Datasheet	STF7N80K5-STMicroelectronics.pdf

STF7N80K5 Product details

Description

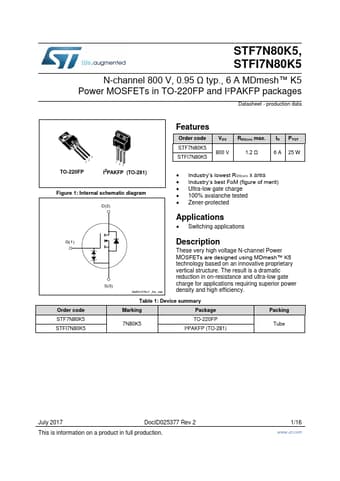

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.The result is a dramatic reduction in on-resistance and ultra-low gate S(3) charge for applications requiring superior power AM01476v1_No_tab density and high efficiency.Table 1: Device summary Marking Package Packing 7N80K5 TO-220FP I²PAKFP (TO-281) Tube July 2017 DocID025377 R

Features

Order code STF7N80K5 STFI7N80K5 VDS 800 V RDS(on) max. 1.2 Ω ID PTOT 6 A 25 W TO-220FP I2PAKFP (TO-281) Figure 1: Internal schematic diagram D(2).
Industry’s lowest RDS(on) x area.
Industry’s best FoM (figure of merit).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected.
