N-channel Power MOSFET

STFI14N80K5 Features

* Order code STF14N80K5 STFI14N80K5 VDS 800 V RDS(on) max. 0.445 Ω ID 12 A TO-220FP I2PAKFP (TO-281) Figure 1: Internal schematic diagram D(2)

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-p

STFI14N80K5 General Description

These very high voltage N-channel Power MOSFET are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Table 1.

STFI14N80K5 Datasheet (600.99 KB)

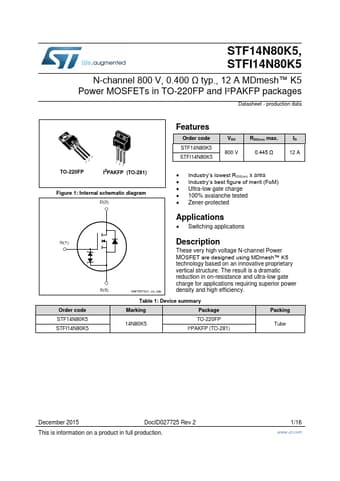

STFI14N80K5 Datasheet Preview — Preview of STFI14N80K5 PDF

Datasheet Details

Part number:

STFI14N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

600.99 KB

Description:

N-channel power mosfet.
STF14N80K5, STFI14N80K5 N-channel 800 V, 0.400 Ω typ., 12 A MDmesh™ K5 Power MOSFETs in TO-220FP and I²PAKFP packages Datasheet - production data Fea.
