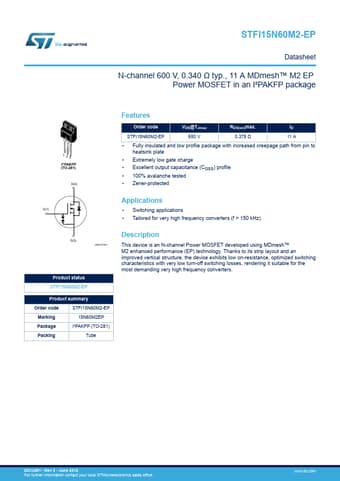

STFI15N60M2-EP Datasheet, Mosfet, STMicroelectronics

STFI15N60M2-EP Features

• Mosfet Order code VDS@TJmax RDS(on)max. ID STFI15N60M2-EP 650 V 0.378 Ω 11 A
• Fully insulated and low profile package with increased creepage path from pin to heatsink plate

PDF File Details

Part number:

STFI15N60M2-EP

Manufacturer:

STMicroelectronics ↗

File Size:

261.72kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ M2 enhanced performance (EP) technology. Thanks to its strip layout

STFI15N60M2-EP Application

• Applications G(1)
• Switching applications
• Tailored for very high frequency converters (f > 150 kHz) S(3) AM01476v1 Product sta
