STFI15N65M5

N-channel Power MOSFET

STMicroelectronics

STFI15N65M5 Features

* Order codes STF15N65M5 STFI15N65M5 STP15N65M5 VDS @ TJmax RDS(on) max ID 710 V < 0.34 Ω 11 A

* Worldwide best RDS(on)

* area

* Higher VDSS rating and high dv/dt capability

* Excellent switching performance

* 100% avalanche tested Applications

* Switching applications

STFI15N65M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STFI15N65M5 Datasheet (634.51 KB)

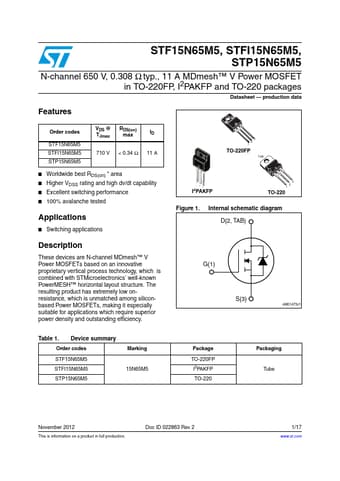

STFI15N65M5 Datasheet Preview — Preview of STFI15N65M5 PDF

Datasheet Details

Part number:

STFI15N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

634.51 KB

Description:

N-channel power mosfet.
STF15N65M5, STFI15N65M5, STP15N65M5 N-channel 650 V, 0.308 Ω typ., 11 A MDmesh™ V Power MOSFET in TO-220FP, I2PAKFP and TO-220 packages Datasheet
.
