STFI15NM65N

N-CHANNEL POWER MOSFET

STMicroelectronics

STFI15NM65N Features

* 3 2 1 TO-220FP 12 3 I 2 PAKFP (TO-281) Order code VDSS @Tjmax RDS(on) max. STF15NM65N STFI15NM65N 710 V 0.38 Ω ID 12 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Figure 1. Internal schematic diagram '

* 6

STFI15NM65N General Description

These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFETs associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the mos.

STFI15NM65N Datasheet (889.20 KB)

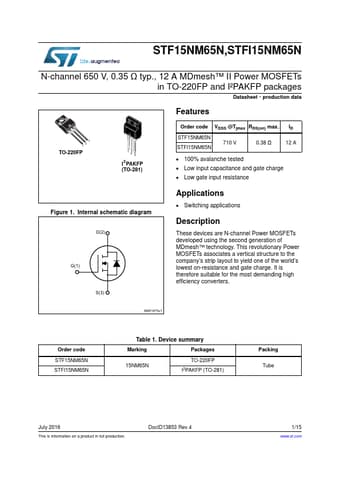

STFI15NM65N Datasheet Preview — Preview of STFI15NM65N PDF

Datasheet Details

Part number:

STFI15NM65N

Manufacturer:

STMicroelectronics ↗

File Size:

889.20 KB

Description:

N-channel power mosfet.
STF15NM65N,STFI15NM65N N-channel 650 V, 0.35 Ω typ., 12 A MDmesh™ II Power MOSFETs in TO-220FP and I²PAKFP packages Datasheet - production data Feat.
