STFI31N65M5, STF31N65M5 N-channel Power MOSFET

STFI31N65M5 Description

STB31N65M5, STF31N65M5, STFI31N65M5, STP31N65M5, STW31N65M5 N-channel 650 V, 0.124 Ω typ., 22 A MDmesh™ V Power MOSFET 22 in D PAK, TO-220FP, I PakFP,.
These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelec.

STFI31N65M5 Features

* TAB 2 3 1 D2PAK TAB 3 2 1 TO-220FP 12 3 I2PakFP 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram Order codes VDSS @ TJmax RDS(on) max ID STB31N65M5 STF31N65M5 STFI31N65M5 710 V < 0.148 Ω 22 A STP31N65M5 STW31N65M5
* Worldwide best RDS(on)
* area
* Hig

STFI31N65M5 Applications

* Switching applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STFI31N65M5, STF31N65M5. Please refer to the document for exact specifications by model.

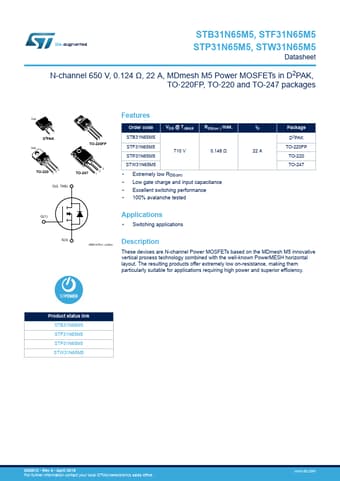

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STFI31N65M5, STF31N65M5
Manufacturer
STMicroelectronics ↗
File Size
1.10 MB
Datasheet
STF31N65M5-STMicroelectronics.pdf
Description
N-channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: STFI31N65M5, STF31N65M5.
Please refer to the document for exact specifications by model.
