STFI34N65M5, STF34N65M5 N-channel Power MOSFET

STFI34N65M5 Description

STF34N65M5, STFI34N65M5 N-channel 650 V, 0.09 Ω typ., 28 A MDmesh™ V Power MOSFETs 22 in TO-220FP, I PAKFP, I PAK packages Datasheet - production data.
These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelec.

STFI34N65M5 Features

* 3 2 1 TO-220FP I2PAKFP(TO-281) Order codes VDS @ TJmax RDS(on) max ID STF34N65M5 STFI34N65M5 710 V 0.11 Ω 28 A
* Worldwide best RDS(on)
* area
* Higher VDSS rating and high dv/dt capability
* Excellent switching performance
* 100% avalanche tested Figure

STFI34N65M5 Applications

* Switching applications '

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STFI34N65M5, STF34N65M5. Please refer to the document for exact specifications by model.

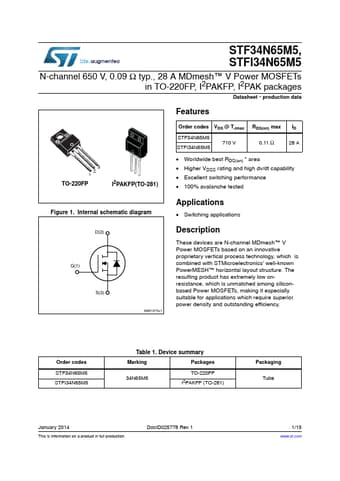

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STFI34N65M5, STF34N65M5
Manufacturer
STMicroelectronics ↗
File Size
1.00 MB
Datasheet
STF34N65M5-STMicroelectronics.pdf
Description
N-channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: STFI34N65M5, STF34N65M5.
Please refer to the document for exact specifications by model.
