STFI40N60M2 Datasheet, Mosfet, STMicroelectronics

STFI40N60M2 Features

  • Mosfet 3 2 1 TO-220FP 12 3 I2PAKFP (TO-281)  TO-3PF    Order codes STF40N60M2 STFI40N60M2 STFW40N60M2 VDS @ TJmax 650 V RDS(on) max ID 0.088 Ω 34 A
  • Extremely low gate ch

PDF File Details

Part number:

STFI40N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

859.21kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical s

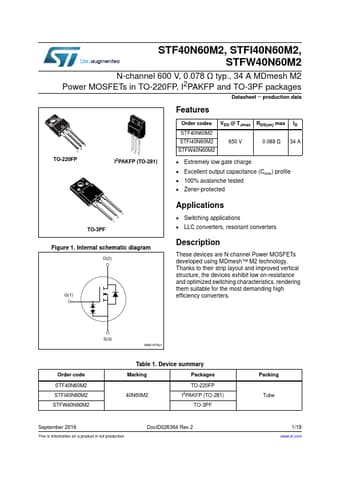

Datasheet Preview: STFI40N60M2 📥 Download PDF (859.21kb)
Page 2 of STFI40N60M2 Page 3 of STFI40N60M2

STFI40N60M2 Application

  • Applications
  • Switching applications
  • LLC converters, resonant converters Figure 1. Internal schematic diagram '
  •
