STFI4N62K3, STF4N62K3 - N-channel Power MOSFET

STMicroelectronics

The STFI4N62K3 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STFI4N62K3 N-channel Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STFI4N62K3** N-channel Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STFI4N62K3, STF4N62K3
Manufacturer	STMicroelectronics
File Size	1.01 MB
Description	N-channel Power MOSFET
Datasheet	STF4N62K3_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STFI4N62K3, STF4N62K3. Please refer to the document for exact specifications by model.

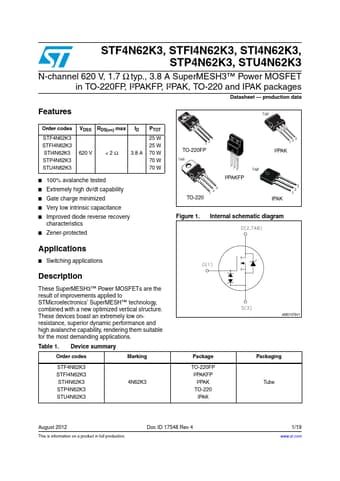

Additional preview pages of the STFI4N62K3 datasheet.

STFI4N62K3 Product details

Description

These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertical structure.

Features

TAB Order codes STF4N62K3 STFI4N62K3 STI4N62K3 STP4N62K3 STU4N62K3 VDSS RDS(on) max ID 620 V < 2 Ω 3.8 A PTOT 25 W 25 W 70 W 70 W 70 W.
100% avalanche tested.
Extremely high dv/dt capability.
Gate charge minimized.
Very low intrinsic capacitance.
Improved diode reverse recovery characteristics.
Zener-protected 3 2 1 TO-220FP TAB 1 23 I²PAKFP TAB 3 2 1 TO-220 123 I²PAK IPAK 3 2 1 Figure 1. Internal schematic diagram D(2,TAB).
