STFI5N80K5

N-channel Power MOSFET

STMicroelectronics

STFI5N80K5 Features

* Order code STFI5N80K5 VDS 800 V RDS(on) max. 1.75 Ω ID 4A

* Fully insulated and low profile package with increased creepage path from pin to heatsink plate

* Industry’s lowest RDS(on) x area

* Industry’s best FoM (figure of merit)

* Ultra-low gate charge

* 100% avalanche test

STFI5N80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STFI5N80K5 Datasheet (562.02 KB)

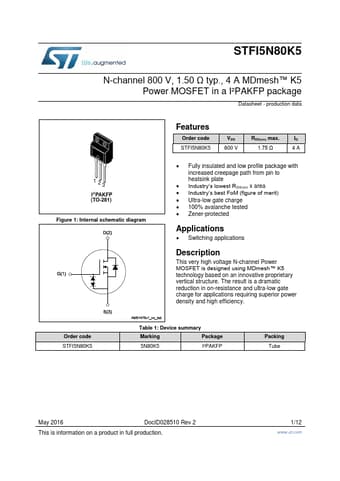

STFI5N80K5 Datasheet Preview — Preview of STFI5N80K5 PDF

Datasheet Details

Part number:

STFI5N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

562.02 KB

Description:

N-channel power mosfet.
STFI5N80K5 N-channel 800 V, 1.50 Ω typ., 4 A MDmesh™ K5 Power MOSFET in a I²PAKFP package Datasheet - production data 1 23 I 2 PAKFP (TO-281) Figure.
