STFI6N62K3 Datasheet, Mosfet, STMicroelectronics

STFI6N62K3 Features

  • Mosfet TAB Order codes STF6N62K3 STFI6N62K3 STI6N62K3 STP6N62K3 STU6N62K3 VDSS RDS(on) max. ID 620 V < 1.2 Ω 5.5 A PTOT 30 W 30 W 90 W 90 W 90 W
  • 100% avalanche tested

PDF File Details

Part number:

STFI6N62K3

Manufacturer:

STMicroelectronics ↗

File Size:

557.25kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a

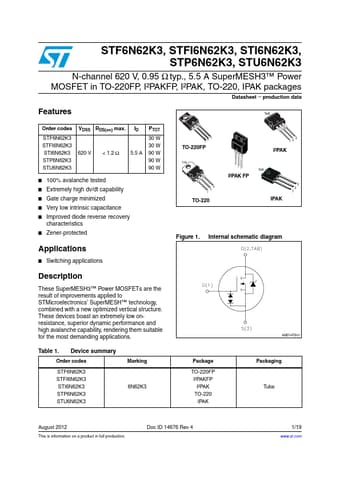

Datasheet Preview: STFI6N62K3 📥 Download PDF (557.25kb)
Page 2 of STFI6N62K3 Page 3 of STFI6N62K3

STFI6N62K3 Application

  • Applications
  • Switching applications 3 2 1 TO-220FP TAB 3 2 1 TO-220 123 I²PAK 1 23 I²PAK FP TAB IPAK 3 2 1 Figure 1. Internal schema
