STFI6N65K3, STF6N65K3 N-channel Power MOSFET

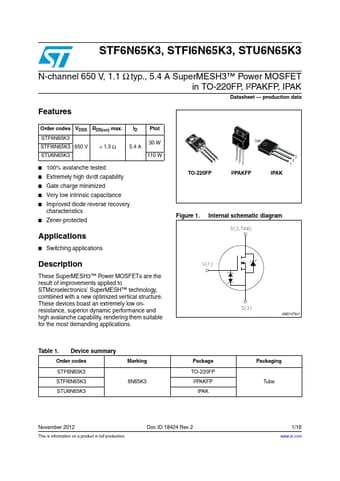

📥 Download Datasheet  Datasheet Preview Page 1

Description

STF6N65K3, STFI6N65K3, STU6N65K3 N-channel 650 V, 1.1 Ω typ., 5.4 A SuperMESH3™ Power MOSFET in TO-220FP, I²PAKFP, IPAK Datasheet * productio.
These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized ver.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STFI6N65K3, STF6N65K3. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STFI6N65K3, STF6N65K3
Manufacturer
STMicroelectronics ↗
File Size
426.08 KB
Datasheet
STF6N65K3-STMicroelectronics.pdf
Description
N-channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: STFI6N65K3, STF6N65K3.
Please refer to the document for exact specifications by model.

Features

* Order codes VDSS RDS(on) max. STF6N65K3 STFI6N65K3 650 V < 1.3 Ω STU6N65K3 ID 5.4 A Ptot 30 W 110 W
* 100% avalanche tested
* Extremely high dv/dt capability
* Gate charge minimized
* Very low intrinsic capacitance
* Improved diode reverse recovery characteristics
* Zener
