STFI6N80K5 Datasheet, Mosfet, STMicroelectronics

STFI6N80K5 Features

  • Mosfet Order code STF6N80K5 STFI6N80K5 VDS RDS(on)max ID 800 V 1.6 Ω 4.5 A PTOT 25 W
  • Industry’s lowest RDS(on)
  • Industry’s best figure of merit (FoM)
  • Ultra

PDF File Details

Part number:

STFI6N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

385.75kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical

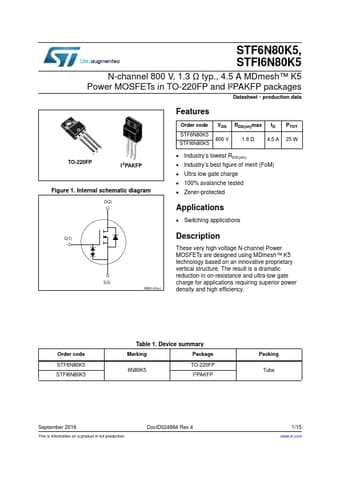

Datasheet Preview: STFI6N80K5 📥 Download PDF (385.75kb)
Page 2 of STFI6N80K5 Page 3 of STFI6N80K5

STFI6N80K5 Application

  • Applications
  • Switching applications G(1) S(3) AM01476v1 Description These very high voltage N-channel Power MOSFETs are designed using
