STFI7LN80K5 - N-channel Power MOSFET

Product Overview

STMicroelectronics

📥 Download Datasheet

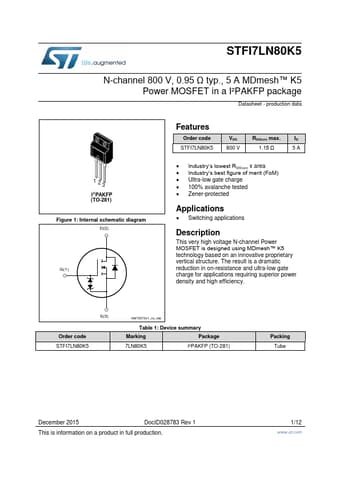

STFI7LN80K5 N-channel Power MOSFET by STMicroelectronics - Datasheet Preview — Datasheet preview – STFI7LN80K5

Datasheet Details

Part number	STFI7LN80K5
Manufacturer	STMicroelectronics
File Size	559.45 KB
Description	N-channel Power MOSFET
Datasheet	STFI7LN80K5 Datasheet
Additional preview pages of the STFI7LN80K5 datasheet.

Product details

Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

Features

Order code STFI7LN80K5 VDS 800 V RDS(on) max. 1.15 Ω ID 5A.
Industry’s lowest RDS(on) x area.
Industry’s best figure of merit (FoM).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected.
