STFI7N80K5, STF7N80K5 N-channel Power MOSFET

STFI7N80K5 Description

STF7N80K5, STFI7N80K5 N-channel 800 V, 0.95 Ω typ., 6 A MDmesh™ K5 Power MOSFETs in TO-220FP and I²PAKFP packages Datasheet - production data .
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STFI7N80K5 Features

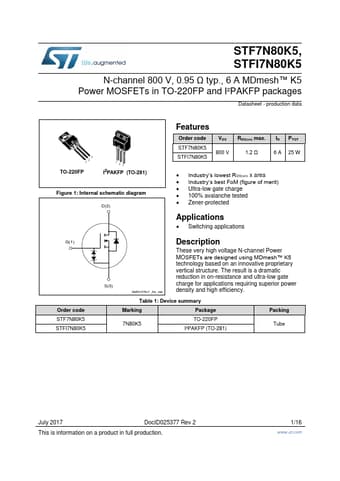

* Order code STF7N80K5 STFI7N80K5 VDS 800 V RDS(on) max. 1.2 Ω ID PTOT 6 A 25 W TO-220FP I2PAKFP (TO-281) Figure 1: Internal schematic diagram D(2)
* Industry’s lowest RDS(on) x area
* Industry’s best FoM (figure of merit)
* Ultra-low gate charge
* 100% avalanche tested
* Z

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STFI7N80K5, STF7N80K5. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STFI7N80K5, STF7N80K5
Manufacturer
STMicroelectronics ↗
File Size
604.71 KB
Datasheet
STF7N80K5-STMicroelectronics.pdf
Description
N-channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: STFI7N80K5, STF7N80K5.
Please refer to the document for exact specifications by model.
