STFI9N80K5 - N-CHANNEL POWER MOSFET

Product Overview

STMicroelectronics

Datasheet Details

Part number	STFI9N80K5
Manufacturer	STMicroelectronics
File Size	592.26 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STFI9N80K5 Datasheet
Note	This datasheet PDF includes multiple part numbers: STFI9N80K5, STF9N80K5. Please refer to the document for exact specifications by model.
Additional preview pages of the STFI9N80K5 datasheet.

Product details

Description

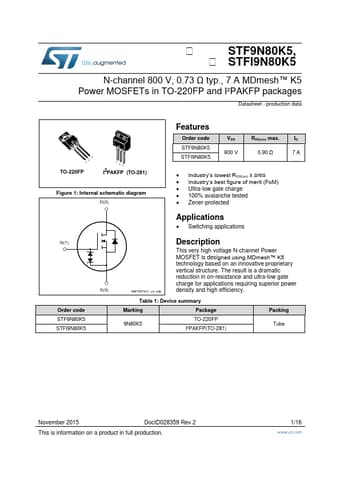

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power S(3) AM15572v1_no_tab density and high efficiency.Order code Table 1: Device summary Marking Package Packing STF9N80K5 STFI9N80K5 9N80K5 TO-220FP I²PAKFP(TO-281) Tube November 2015 DocID028359 Rev 2 This is information

Features

Order code STF9N80K5 STFI9N80K5 VDS 800 V RDS(on) max. 0.90 Ω ID 7A TO-220FP I2PAKFP (TO-281) Figure 1: Internal schematic diagram D(2).
Industry’s lowest RDS(on) x area.
Industry’s best figure of merit (FoM).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected.
