STGP7NC60HD, STGB7NC60HDT4 600V 14A very fast IGBT

STMicroelectronics

Description

STGB7NC60HDT4, STGP7NC60HD Datasheet 600 V, 14 A very fast IGBT TAB TAB 3 1 D2PAK TO-220 1 23 C(2, TAB) G(1) E(3) NG1E3C2T .
These devices are very fast IGBTs developed using advanced PowerMESH technology.

📥 Download Datasheet

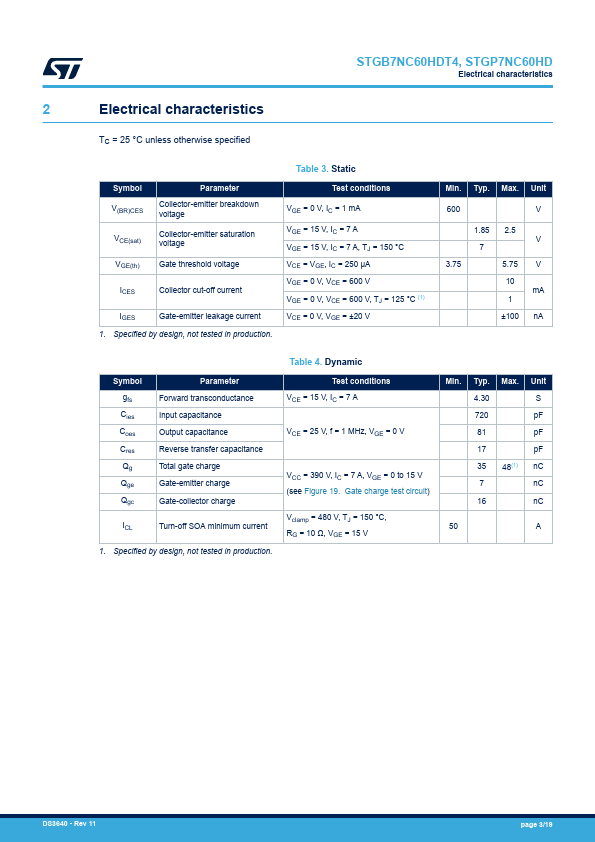

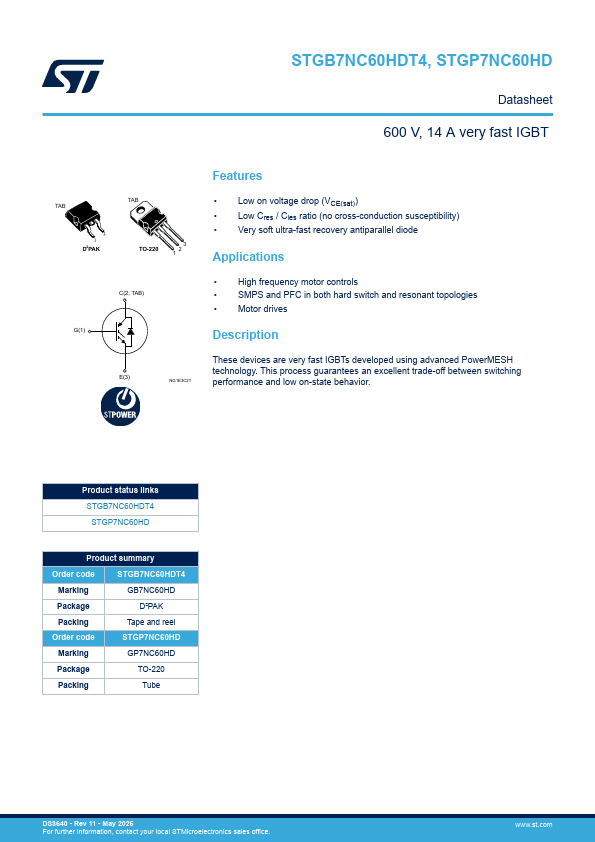

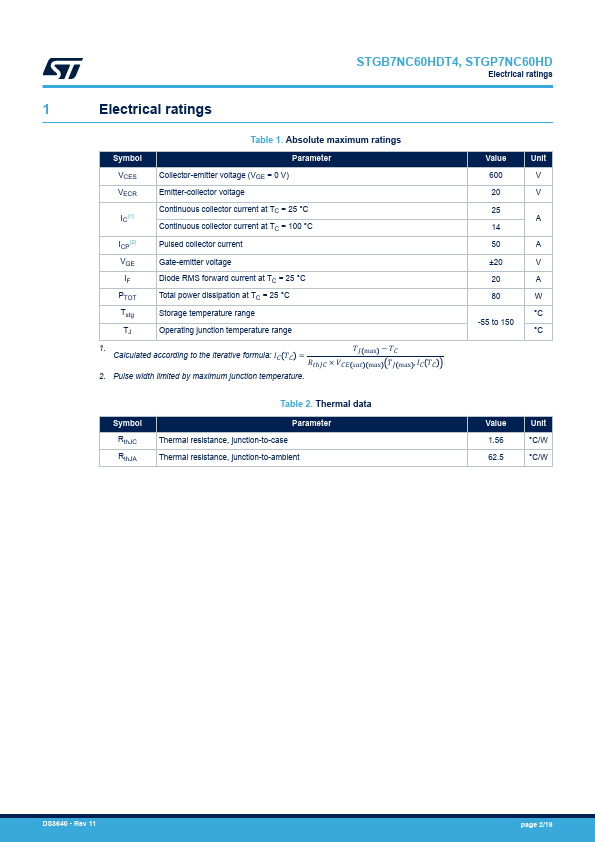

STGP7NC60HD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP7NC60HD, STGB7NC60HDT4. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STGP7NC60HD, STGB7NC60HDT4
Manufacturer: STMicroelectronics ↗
File Size: 3.32 MB
Datasheet: STGB7NC60HDT4-STMicroelectronics.pdf
Description: 600V 14A very fast IGBT
Note: This datasheet PDF includes multiple part numbers: STGP7NC60HD, STGB7NC60HDT4.
Please refer to the document for exact specifications by model.

Features

* Low on voltage drop (VCE(sat))
* Low Cres / Cies ratio (no cross-conduction susceptibility)

Applications

* High frequency motor controls
* SMPS and PFC in both hard switch and resonant topologies
