STGP10H60DF Datasheet, Igbt, STMicroelectronics

STGP10H60DF Features

  • Igbt
  • High speed switching
  • Tight parameters distribution
  • Safe paralleling
  • Low thermal resistance
  • Short-circuit rated
  • Ultrafast soft

PDF File Details

Part number:

STGP10H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

742.46kb

Download:

📄 Datasheet

Description:

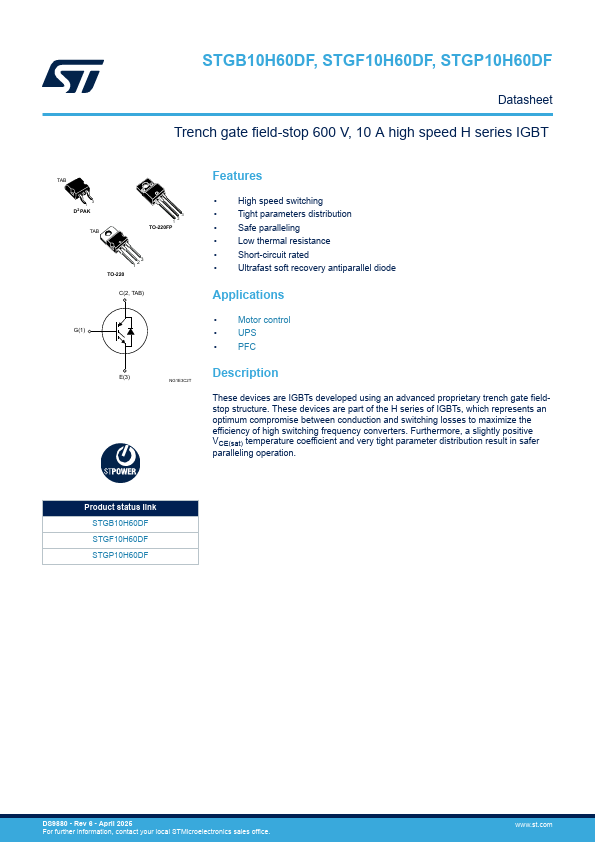

Igbt. E(3) NG1E3C2T These devices are IGBTs developed using an advanced proprietary trench gate field- stop structure. These devices ar

Datasheet Preview: STGP10H60DF 📥 Download PDF (742.46kb)

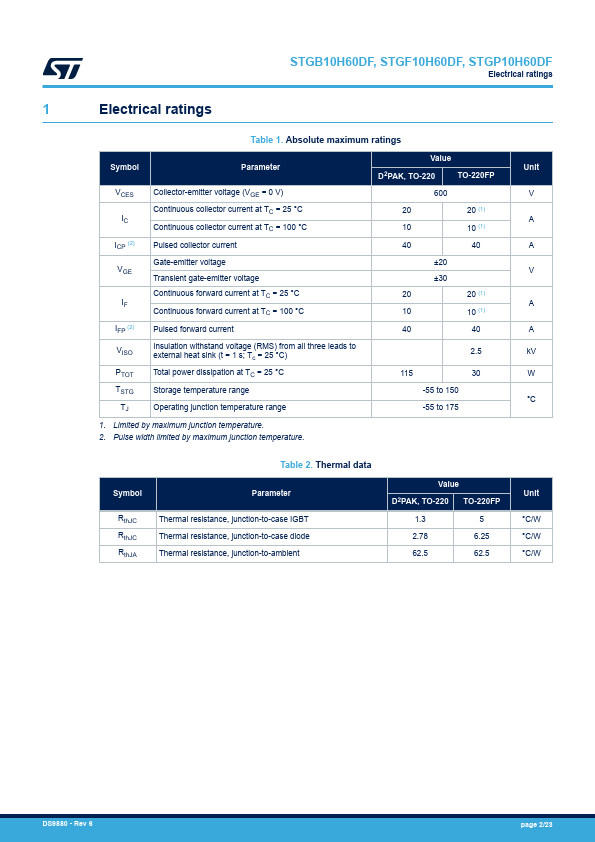

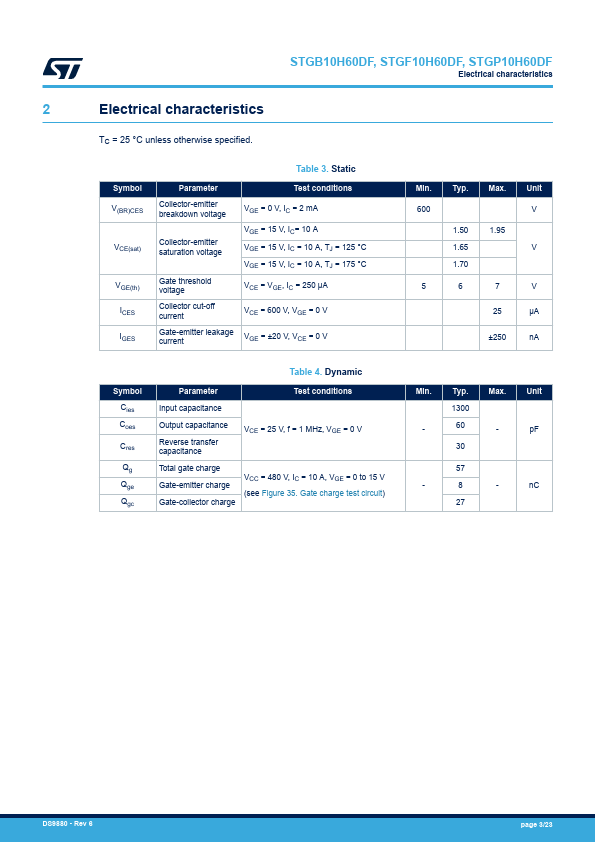

Page 2 of STGP10H60DF Page 3 of STGP10H60DF

STGP10H60DF Application

  • Applications
  • Motor control
  • UPS
  • PFC Description E(3) NG1E3C2T These devices are IGBTs developed using an advanced p
