STGP10NB60S Datasheet, Igbt, ST Microelectronics

STGP10NB60S Features

  • Igbt TYPE STGP10NB60S STGP10NB60SFP STGB10NB60S s Figure 1: Package IC @100°C 10 A 10 A 10 A 1 2 VCES 600 V 600 V 600 V VCE(sat) (Max) @25°C < 1.7 V < 1.7 V < 1.7 V 3 1 2 3 s s s HIGH

PDF File Details

Part number:

STGP10NB60S

Manufacturer:

STMicroelectronics ↗

File Size:

578.05kb

Download:

📄 Datasheet

Description:

Low drop igbt. Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBT

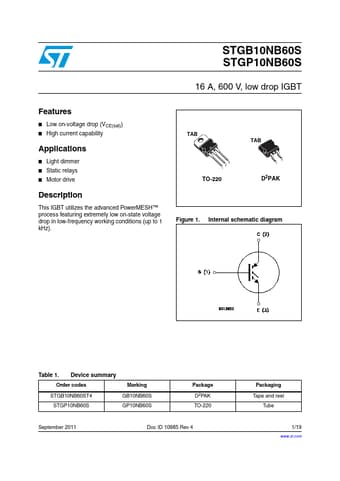

Datasheet Preview: STGP10NB60S 📥 Download PDF (578.05kb)
Page 2 of STGP10NB60S Page 3 of STGP10NB60S

STGP10NB60S Application

  • Applications (<1kHz). 3 1 D²PAK Figure 2: Internal Schematic Diagram APPLICATIONS LIGHT DIMMER s STATIC RELAYS s MOTOR CONTROL s Table 2: Order
