STGP10NB60SFP General Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH ™ IGBTs, with outstanding performances. The suffix “S” identifies a family optimized achieve minimum on-voltage drop for low frequency applications (<.

STGP10NB60SFP Datasheet (306.62 KB)

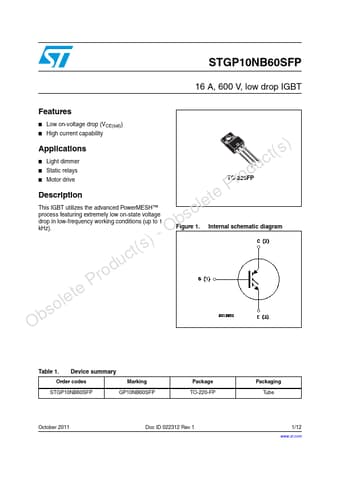

STGP10NB60SFP Datasheet Preview — Preview of STGP10NB60SFP PDF

Datasheet Details

Part number:

STGP10NB60SFP

Manufacturer:

STMicroelectronics ↗

File Size:

306.62 KB

Description:

Igbt.
STGP10NB60SFP N-CHANNEL 10A - 600V - TO-220FP PowerMesh™ IGBT TYPE STGP10NB60SFP s VCES 600 VCE(sat) < 1.7 V IC 10 A s s s HIGHT INPUT IMPEDANCE .
