STGP15H60DF

Trench gate field-stop IGBT

STGP15H60DF Features

* High speed switching

* Tight parameters distribution

* Safe paralleling

* Low thermal resistance

* Short-circuit rated

* Ultrafast soft recovery antiparallel diode Applications

* Motor control

* UPS, PFC Description These devices are

STGP15H60DF General Description

These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. These devices are part of the H series of IGBTs, which represents an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency converters. Furtherm.

STGP15H60DF Datasheet (780.02 KB)

Preview of STGP15H60DF PDF

Datasheet Details

Part number:

STGP15H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

780.02 KB

Description:

Trench gate field-stop igbt.
STGB15H60DF, STGF15H60DF, STGP15H60DF Datasheet Trench gate field-stop IGBT, H series 600 V, 14 A high speed TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-2.

📁 Related Datasheet

STGP15M65DF2 Trench gate field-stop IGBT (STMicroelectronics)

STGP100N30 Fast IGBT (STMicroelectronics)

STGP10H60DF IGBT (STMicroelectronics)

STGP10HF60KD Short-circuit Rugged IGBT (ST Microelectronics)

STGP10M65DF2 Trench gate field-stop IGBT (STMicroelectronics)

STGP10N60L N-CHANNEL IGBT (ST Microelectronics)

STGP10NB37LZ IGBT (ST Microelectronics)

STGP10NB60S low drop IGBT (ST Microelectronics)

STGP10NB60SD low drop IGBT (ST Microelectronics)

STGP10NB60SDFP N-CHANNEL IGBT (ST Microelectronics)

TAGS

STGP15H60DF Trench gate field-stop IGBT STMicroelectronics

Image Gallery

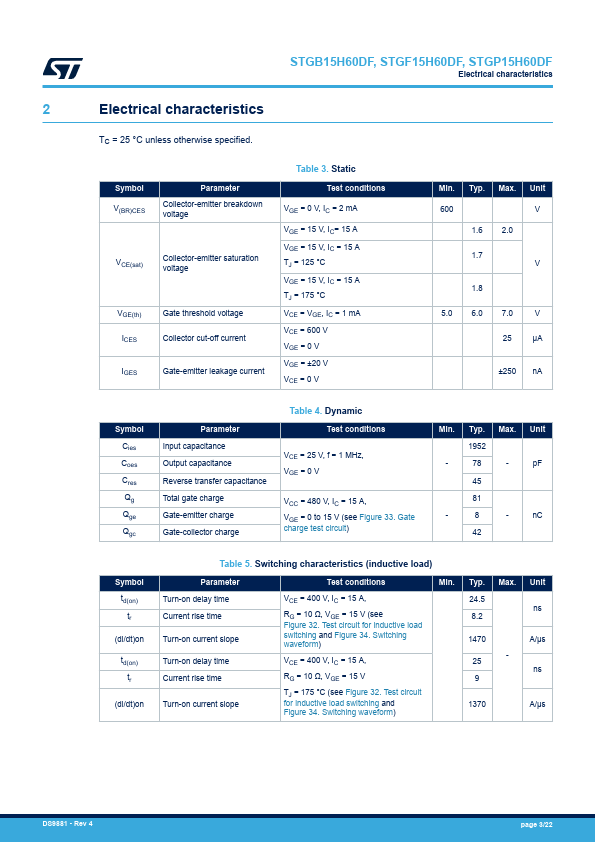

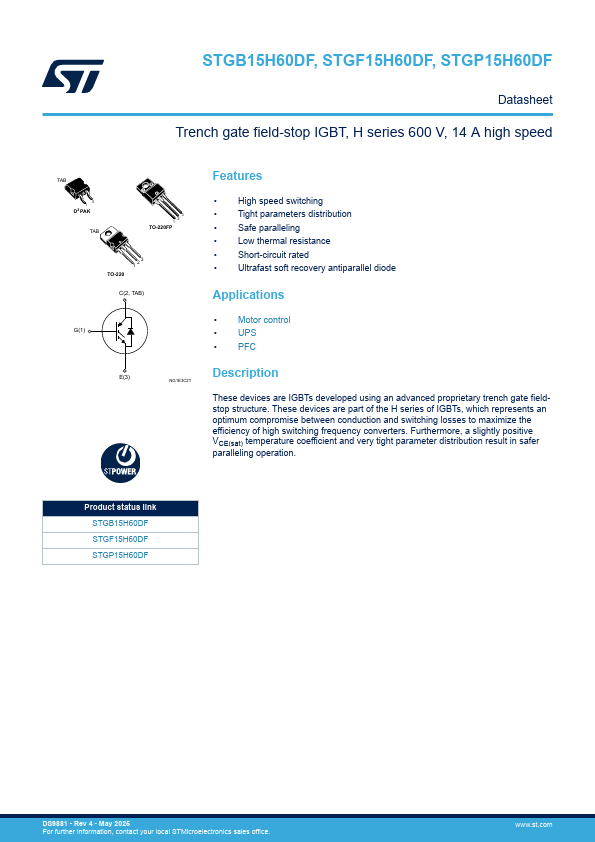

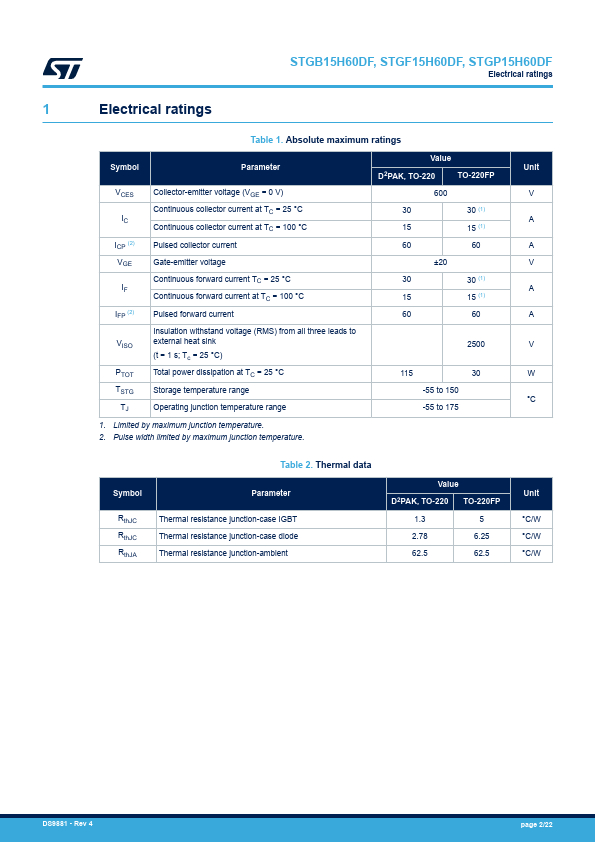

STGP15H60DF Datasheet Preview Page 2 STGP15H60DF Datasheet Preview Page 3
