STH47N60DM6-2AG - N-channel Power MOSFET

General Description

This high-voltage N-channel Power MOSFET is part of the MDmesh™ DM6 fastrecovery diode series.

Key Features

  • Order code STH47N60DM6-2AG VDS 600 V RDS(on) max. 80 mΩ ID 36 A.
  • AEC-Q101 qualified.
  • Fast-recovery body diode.
  • Lower RDS(on) per area vs previous generation.
  • Low gate charge, input capacitance and resistance.
  • 100% avalanche tested.
  • Extremely high dv/dt ruggedness.
  • Zener-protected.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STH4010 2.5-W MONO FILTER-FREE CLASS-D AUDIO POWER AMPLIFIER Sitch Semiconductors
STH48D35 Solid-State Relays TELEDYNE
STH1061 NPN Plastic Power Transistor SEMTECH ELECTRONICS
STH10NA50 N-CHANNEL Power MOS MOSFET ST Microelectronics
STH10NA50FI N-CHANNEL Power MOS MOSFET ST Microelectronics

Other Datasheets by STMicroelectronics

Part Number Description
STH400N4F6-2 N-channel Power MOSFET
STH400N4F6-6 N-channel Power MOSFET
STH410N4F7-2AG N-channel Power MOSFET
STH410N4F7-6AG N-channel Power MOSFET
STH10N80K5-2AG Automotive-grade N-channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

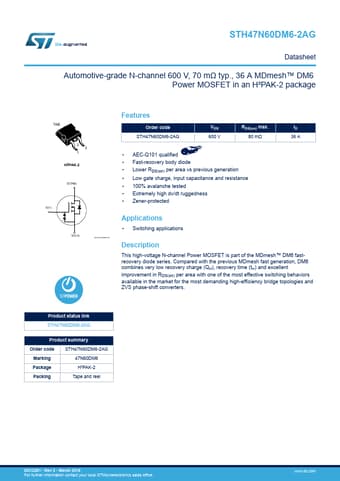

STH47N60DM6-2AG Datasheet Automotive-grade N-channel 600 V, 70 mΩ typ., 36 A MDmesh™ DM6 Power MOSFET in an H²PAK-2 package TAB 23 1 H2PAK-2 D(TAB) G(1) S(2,3) NCHG1DTABS23TZ Features Order code STH47N60DM6-2AG VDS 600 V RDS(on) max. 80 mΩ ID 36 A • AEC-Q101 qualified • Fast-recovery body diode • Lower RDS(on) per area vs previous generation • Low gate charge, input capacitance and resistance • 100% avalanche tested • Extremely high dv/dt ruggedness • Zener-protected Applications • Switching applications Description This high-voltage N-channel Power MOSFET is part of the MDmesh™ DM6 fastrecovery diode series.
