STL40C30H3LL

POWER MOSFET

STMicroelectronics

STL40C30H3LL Features

* 1 2 3 4 PowerFLAT™5x6 double island Figure 1. Internal schematic diagram Order code Channel VDS RDS(on) max ID N STL40C30H3LL P 0.021 Ω @ 10 V 10 A 30 V 0.03 Ω @ 10 V 8 A

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* High avalanche ruggedn

STL40C30H3LL General Description

This device is a complementary N-channel and Pchannel Power MOSFET developed using STripFET™ V (P-channel) and STripFET™ VI DeepGATE™ (N-channel) technologies. The resulting device exhibits low on-state resistance and an FOM among the lowest in its voltage class. AM00623v2 Order code Table 1. De.

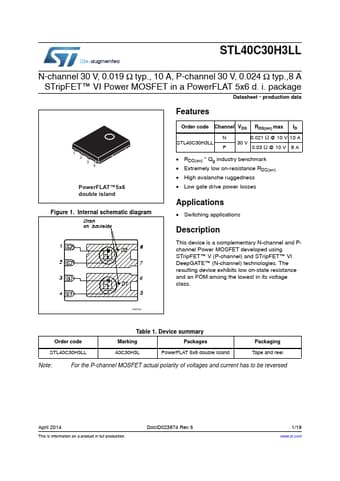

STL40C30H3LL Datasheet (1.37 MB)

STL40C30H3LL Datasheet Preview — Preview of STL40C30H3LL PDF

Datasheet Details

Part number:

STL40C30H3LL

Manufacturer:

STMicroelectronics ↗

File Size:

1.37 MB

Description:

Power mosfet.
STL40C30H3LL N-channel 30 V, 0.019 Ω typ., 10 A, P-channel 30 V, 0.024 Ω typ.,8 A STripFET™ VI Power MOSFET in a PowerFLAT 5x6 d. i. package Datashee.
