STL40DN3LLH5

Dual N-channel Power MOSFET

STMicroelectronics

STL40DN3LLH5 Features

* Order code STL40DN3LLH5 VDS 30 V RDS(on) max. ID 0.018 Ω 40 A Figure 1. Internal schematic diagram

* AEC-Q101 qualified

* Low on-resistance

* High avalanche ruggedness

* Low gate drive power loss

* Wettable flank package Applications

* Switching a

STL40DN3LLH5 General Description

This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™ H5 technology. The device has been optimized to achieve very low on-state resistance, contributing to a FoM that is among the best in its class. Order code STL40DN3LLH5 Table 1. Device summary Marking Package .

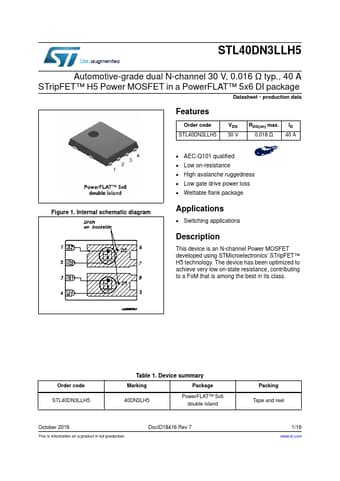

STL40DN3LLH5 Datasheet (777.30 KB)

STL40DN3LLH5 Datasheet Preview — Preview of STL40DN3LLH5 PDF

Datasheet Details

Part number:

STL40DN3LLH5

Manufacturer:

STMicroelectronics ↗

File Size:

777.30 KB

Description:

Dual n-channel power mosfet.
STL40DN3LLH5 Automotive-grade dual N-channel 30 V, 0.016 Ω typ., 40 A STripFET™ H5 Power MOSFET in a PowerFLAT™ 5x6 DI package Datasheet - production.
