STLED316S Datasheet - STMicroelectronics

Serial-interfaced 6-digit LED controller

STLED316S Features

* LED driver with 14 outputs (8 segments/6 digits)

* 40 mA load current capability for each segment

* Output pins connected directly to the LEDs or can be open-drain

* Key-scanning (8 x 2 matrix)

* Low power consumption in standby mode

* 3-wire serial bus interface (CLK, STB

STLED316S General Description

The STLED316S is a compact LED controller and driver that interface microprocessors to LED displays through a serial 3-wire interface. It drives LED connected in common anode configuration. The STLED316S drives up to 48 discrete LEDs in 8 segment/6 digit configuration while functioning from a supply.

STLED316S Datasheet (355.90 KB)

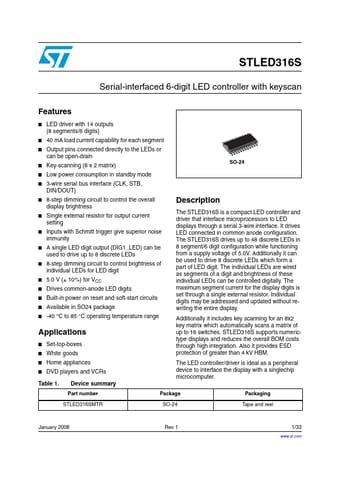

Preview of STLED316S PDF

Datasheet Details

Part number:

STLED316S

Manufacturer:

STMicroelectronics ↗

File Size:

355.90 KB

Description:

Serial-interfaced 6-digit led controller.
