STLED524

Intelligent matrix LED display driver

STMicroelectronics

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	STMicroelectronics	STLED524	STLED524	IC DRVR DOT MATRIX 56CSP	DigiKey	13767	2500 units	$1.73	🛒 Buy Now

📥 Download PDF (3.10 MB)

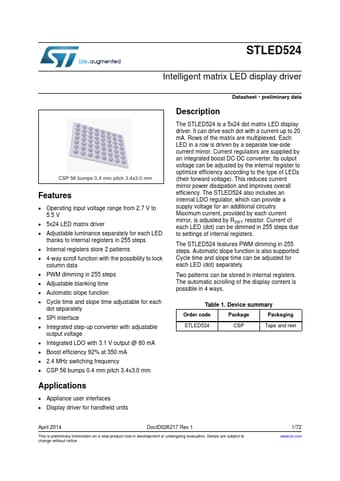

STLED524 Datasheet Preview Page 1 — Preview of STLED524 Datasheet

Datasheet Details

Part number:

STLED524

Manufacturer:

STMicroelectronics ↗

File Size:

3.10 MB

Download:

📄 Download STLED524 Datasheet PDF

Description:

Intelligent matrix led display driver.
STLED524 Intelligent matrix LED display driver CSP 56 bumps 0.4 mm pitch 3.4x3.0 mm Features * Ope.
The STLED524 is a 5x24 dot matrix LED display driver. It can drive each dot with a current up to 20 .

✔ STLED524 Features

Operating input voltage range from 2.7 V to 5.5 V
5x24 LED matrix driver
Adjustable luminance separately for each LED thanks to internal registers in 255 steps
In

✔ STLED524 Application

Appliance user interfaces
Display driver for handheld units Datasheet - preliminary data Description Th
