STLQ50C25R, STLQ50 Datasheet - STMicroelectronics

STLQ50C25R low drop linear regulator

The STLQ50 is a BiCMOS linear regulator specifically designed for operating in environment with very low power consumption constraints. Due to the very low quiescent current (3 µA) the device is suitable for those application that have very long stand-by time allowing extension of battery life. The .

STLQ50C25R Features

* 2.3 V to 12 V input voltage range

* 50 mA maximum output current

* 3 µA quiescent current

* Available in 1.8 V, 2.5 V, 3.3 V, 5.0 V and adjustable

* 200 mV dropout voltage at 25 mA output current

* Internal thermal protection

* Available in SOT323-5L package, and SOT23-

STLQ50-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STLQ50C25R, STLQ50. Please refer to the document for exact specifications by model.

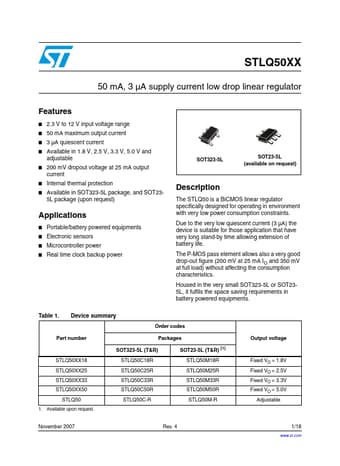

STLQ50C25R Datasheet Preview Page 2 STLQ50C25R Datasheet Preview Page 3

Datasheet Details

Part number:

STLQ50C25R, STLQ50

Manufacturer:

STMicroelectronics ↗

File Size:

292.46 KB

Description:

Low drop linear regulator.

Note:

This datasheet PDF includes multiple part numbers: STLQ50C25R, STLQ50.
Please refer to the document for exact specifications by model.
