STLQ50C50R, STLQ50 low drop linear regulator

STLQ50C50R Description

STLQ50XX 50 mA, 3 µA supply current low drop linear regulator .
The STLQ50 is a BiCMOS linear regulator specifically designed for operating in environment with very low power consumption constraints.

STLQ50C50R Features

* 2.3 V to 12 V input voltage range
* 50 mA maximum output current
* 3 µA quiescent current
* Available in 1.8 V, 2.5 V, 3.3 V, 5.0 V and adjustable
* 200 mV dropout voltage at 25 mA output current
* Internal thermal protection
* Available in SOT323-5L package, and SOT23-

STLQ50C50R Applications

* Portable/battery powered equipments
* Electronic sensors
* Microcontroller power

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STLQ50C50R, STLQ50. Please refer to the document for exact specifications by model.

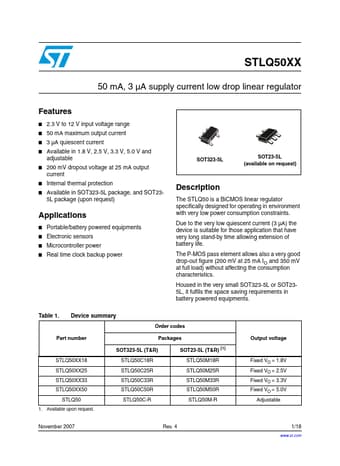

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STLQ50C50R, STLQ50
Manufacturer
STMicroelectronics ↗
File Size
292.46 KB
Datasheet
STLQ50-STMicroelectronics.pdf
Description
low drop linear regulator
Note
This datasheet PDF includes multiple part numbers: STLQ50C50R, STLQ50.
Please refer to the document for exact specifications by model.
