STLS2F02

High performance 64-bit superscalar MIPS microprocessor

STLS2F02 Features

* MIPSĀ® Loongson 2F microprocessor Preliminary Data 64-bit superscalar architecture 900 MHz clock frequency Single/double precision floating-point units New streaming multimedia instruction set support (SIMD) 64 Kbyte instruction cache, 64 Kbyte data cache,

STLS2F02 General Description

The STLS2F02 is a MIPS based 64-bit superscalar microprocessor, able to issue four instructions per clock cycle among six functional units: two integer, two single/double-precision floating-point, one 64-bit SIMD and one load/store unit. The micro architecture is organized with nine stages of pipeli.

STLS2F02 Datasheet (785.42 KB)

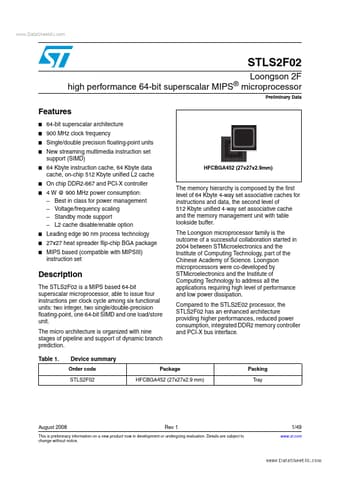

Preview of STLS2F02 PDF

Datasheet Details

Part number:

STLS2F02

Manufacturer:

STMicroelectronics ↗

File Size:

785.42 KB

Description:

High performance 64-bit superscalar mips microprocessor.
