STLS2E02

700MHz 64-bit superscalar MIPS based microprocessor

STLS2E02 Features

* 64 bit superscalar architecture 700MHz clock frequency (typical conditions) Single/double precision floating-point units New Streaming Multimedia instruction set support (SIMD) 64KB instruction cache, 64KB data cache, onchip 512KB un

STLS2E02 General Description

The STLS2E02, is a MIPS based 64-bit superscalar microprocessor, able to issue four instructions per clock cycle among six functional units: two integer, two single/double-precision floating-point, one 64bit SIMD and one load/store unit. The microarchitecture is organized with nine stages of pipelin.

STLS2E02 Datasheet (144.09 KB)

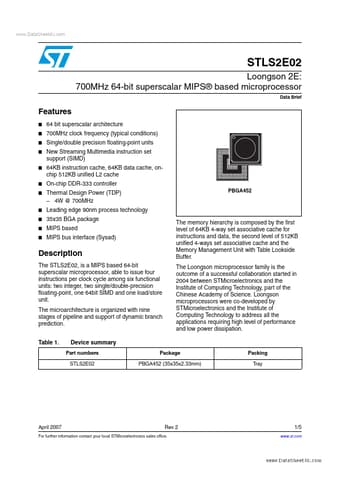

Preview of STLS2E02 PDF

Datasheet Details

Part number:

STLS2E02

Manufacturer:

STMicroelectronics ↗

File Size:

144.09 KB

Description:

700mhz 64-bit superscalar mips based microprocessor.
