STP24N60M2

N-CHANNEL POWER MOSFET

STP24N60M2 Features

* Order codes VDS @ TJmax RDS(on) max ID STB24N60M2 STI24N60M2 STP24N60M2 STW24N60M2 650 V 0.19 Ω 18 A

* Extremely low gate charge

* Lower RDS(on) x area vs previous generation

* Low gate input resistance

* 100% avalanche tested

* Zener-protected Applicati

STP24N60M2 General Description

These devices are N-channel Power MOSFETs developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg. These revolutionary Power MOSFETs associate a vertical structure to the company's strip layout to yield one of the world's lowest on-resistance and gate charge. They are therefor.

STP24N60M2 Datasheet (909.67 KB)

Preview of STP24N60M2 PDF

Datasheet Details

Part number:

STP24N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

909.67 KB

Description:

N-channel power mosfet.

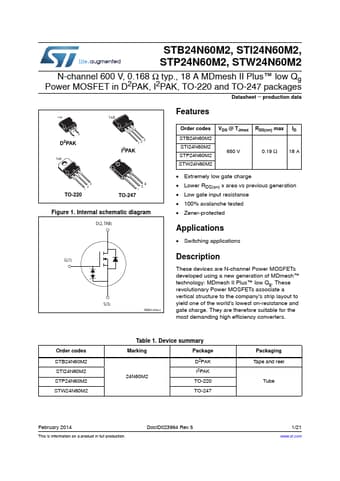

STB24N60M2, STI24N60M2, STP24N60M2, STW24N60M2 N-channel 600 V, 0.168 Ω typ., 18 A MDmesh II Plus™ low Qg 22 Power MOSFET in D PAK, I PAK, TO-220 and .
