STP24NF10 - N-Channel Power MOSFET

Name: STP24NF10
SKU: STP24NF10-575533

ST Microelectronics

📥 Download Datasheet

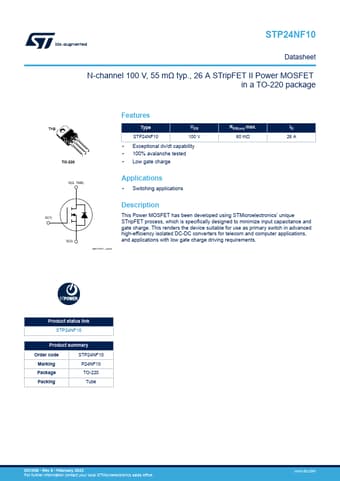

STP24NF10 Datasheet Preview — Preview of STP24NF10 PDF

Datasheet Details

Part number	STP24NF10
Manufacturer	STMicroelectronics
File Size	326.55 KB
Description	N-Channel Power MOSFET
Datasheet	STP24NF10_STMicroelectronics.pdf

STP24NF10 Product details

Description

This Power MOSFET has been developed using STMicroelectronics' unique STripFET process, which is specifically designed to minimize input capacitance and gate charge.

Features

Type VDS RDS(on) max. ID STP24NF10 100 V 60 mΩ 26 A.
Exceptional dv/dt capability.
100% avalanche tested.
Low gate charge D(2, TAB).
