STP3N62K3 - N-channel Power MOSFET

STMicroelectronics

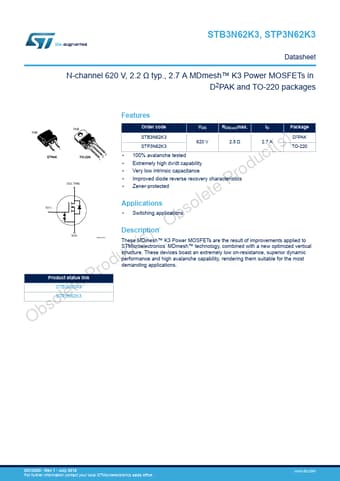

STP3N62K3 Datasheet Preview — Preview of STP3N62K3 PDF

Datasheet Details

Part number	STP3N62K3
Manufacturer	STMicroelectronics ↗
File Size	611.92 KB
Description	N-channel Power MOSFET
Datasheet	STP3N62K3_STMicroelectronics.pdf

STP3N62K3 Product details

Description

These MDmesh™ K3 Power MOSFETs are the result of improvements applied to STMicroelectronics’ MDmesh™ technology, combined with a new optimized vertical structure.

Features

TAB Order code VDS RDS(on)max. ID Package TAB t(s) 3 1 c D2PAK TO-220 1 23 Produ D(2, TAB) olete G(1) - Obs S(3) AM01475V1 roduct(s) Product status link te P STB3N62K3 Obsole STP3N62K3 STB3N62K3 STP3N62K3 620 V 2.5 Ω.
100% avalanche tested.
Extremely high dv/dt capability.
Very low intrinsic capacitance.
Improved diode reverse recovery characteristics.
Zener-protected 2.7 A D2PAK TO-220.
