STP3NA100FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

STP3NA100 STP3NA100FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STP3NA100 STP3NA100FI s s s s s s s V DSS 1000 V 1000 V R DS(on) <5 Ω <5Ω ID 3.5 A 2A TYPICAL RDS(on) = 4.3 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD TO-220 3 1 2 1 2 3 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FO.

STP3NA100FI Datasheet (365.92 KB)

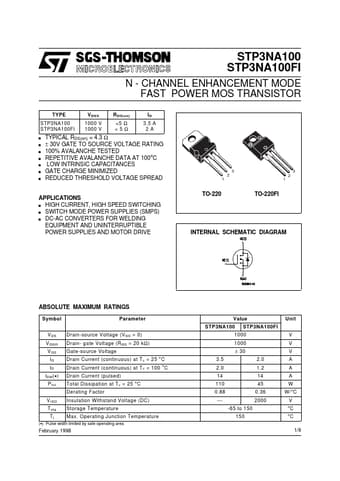

STP3NA100FI Datasheet Preview — Preview of STP3NA100FI PDF

Datasheet Details

Part number:

STP3NA100FI

Manufacturer:

STMicroelectronics ↗

File Size:

365.92 KB

Description:

N - channel enhancement mode fast power mos transistor.
