STP3NA80, STP4NA80 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

STP3NA80 Description

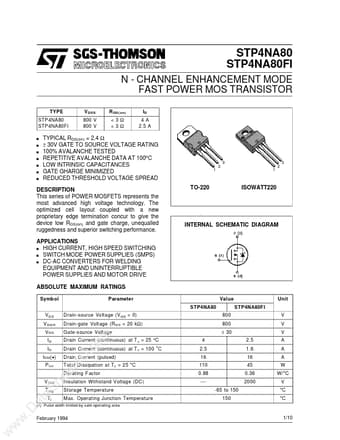

www.DataSheet4U.com STP4NA80 STP4NA80FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STP4NA80 STP4NA80FI s s s s s s s V DSS 800 V 80.
This series of POWER MOSFETS represents the most advanced high voltage technology.

STP3NA80 Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE s ISOWATT220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter STP4NA80 VD S V DG R V GS ID ID ID M(
* ) P t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP3NA80, STP4NA80. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP3NA80, STP4NA80
Manufacturer
STMicroelectronics ↗
File Size
236.53 KB
Datasheet
STP4NA80_STMicroelectronics.pdf
Description
N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: STP3NA80, STP4NA80.
Please refer to the document for exact specifications by model.
