STP40N65M2 Datasheet, Mosfet, STMicroelectronics

STP40N65M2 Features

• Mosfet Order code STI40N65M2 STP40N65M2 VDS 650 V RDS(on) max. 0.099 Ω ID 32 A
• Extremely low gate charge
• Excellent output capacitance (COSS) profile
• 100% aval

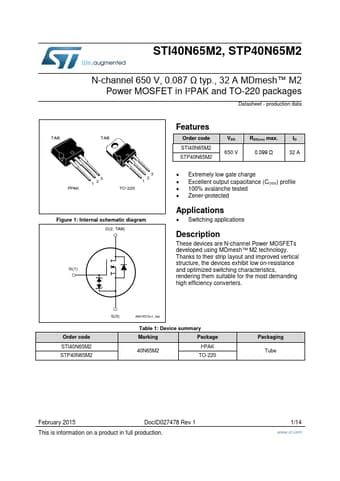

PDF File Details

Part number:

STP40N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

320.53kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical s

STP40N65M2 Application

• Applications
• Switching applications Description These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to
