STP40NS15

N-CHANNEL MOSFET

STMicroelectronics

STP40NS15 General Description

This powermos MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY™ process. This technology matches and improves the performances compared with standard parts from various sources. TO-220 INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH CURRENT SWITCHING s UNINTERRUPT.

STP40NS15 Datasheet (105.89 KB)

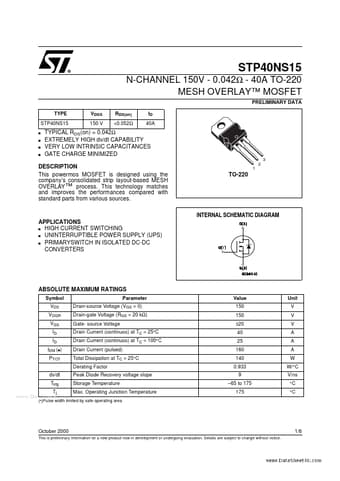

STP40NS15 Datasheet Preview — Preview of STP40NS15 PDF

Datasheet Details

Part number:

STP40NS15

Manufacturer:

STMicroelectronics ↗

File Size:

105.89 KB

Description:

N-channel mosfet.
N-CHANNEL 150V - 0.042Ω - 40A TO-220 MESH OVERLAY™ MOSFET PRELIMINARY DATA TYPE STP40NS15 s s s s STP40NS15 VDSS 150 V RDS(on) <0.052Ω ID 40A TYP.
