STP5N62K3 Datasheet N-channel MOSFET

Manufacturer: STMicroelectronics

Download the STP5N62K3 datasheet PDF. This datasheet also includes the STB5N variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

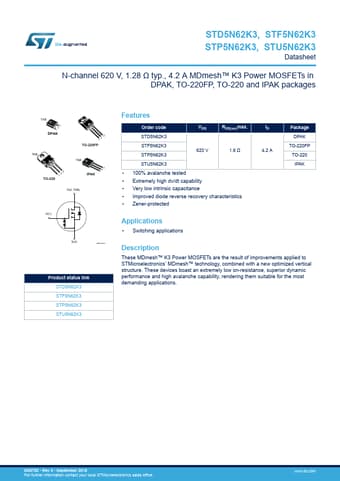

STP5N62K3 n-channel mosfet by STMicroelectronics - Datasheet Preview — Note: The manufacturer provides a single datasheet file (STB5N-62K3.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	STP5N62K3
Manufacturer	STMicroelectronics
File Size	556.19 KB
Description	N-channel MOSFET
Download	STP5N62K3 Download (PDF)

General Description

These devices are made using the SuperMESH3™ Power MOSFET technology that is obtained via improvements applied to STMicroelectronics’ SuperMESH™ technology combined with a new optimized vertical structure.

The resulting product has an extremely low on resistance, superior dynamic performance and high avalanche capability, making it especially suitable for the most demanding applications.

Table 1.

Overview

STB5N62K3, STD5N62K3, STF5N62K3 STP5N62K3, STU5N62K3 N-channel 620 V, 1.28 Ω , 4.

Key Features

Order codes STB5N62K3 STD5N62K3 STF5N62K3 STP5N62K3 STU5N62K3.
VDSS RDS(on) max. ID Pw 3 3 1 1 2 70 W 620 V < 1.6 Ω 4.2 A 25 W 70 W 1 2 3 TO-220 DPAK TO-220FP 100% avalanche tested Extremely large avalanche performance Gate charge minimized Very low intrinsic capacitance Improved diode reverse recovery characteristics Zener-protected Figure 1. 3 1 1 3 2 D²PAK IPAK Internal schematic diagram D(2).
