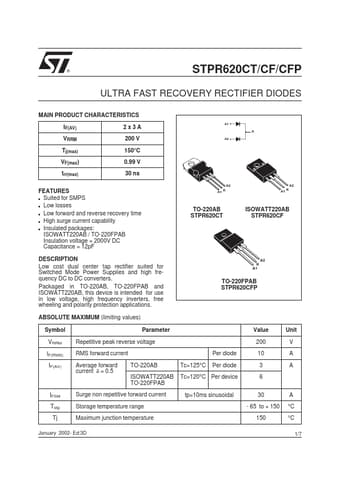

STPR620CF Datasheet, Diodes, STMicroelectronics

STPR620CF Features

• Diodes s Suited for SMPS s Low losses s Low forward and reverse recovery time s High surge current capability s Insulated packages: ISOWATT220AB / TO-220FPAB Insulation voltage = 2000V DC Capa

PDF File Details

Part number:

STPR620CF

Manufacturer:

STMicroelectronics ↗

File Size:

766.94kb

Download:

📄 Datasheet

Description:

Ultra fast recovery rectifier diodes. Low cost dual center tap rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in TO-220

STPR620CF Application

• Applications A2 K A1 TO-220FPAB STPR620CFP ABSOLUTE MAXIMUM (limiting values) Symbol Parameter Value Unit VRRM IF(RMS) IF(AV) Repetitive pe
