STPR620CT, STPR620C ULTRA FAST RECOVERY RECTIFIER DIODES

STMicroelectronics

Description

® STPR620CT/CF/CFP ULTRA FAST RECOVERY RECTIFIER DIODES MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj(max) VF(max) trr(max) 2x3A 200 V 150°C 0.99 V .
Low cost dual center tap rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters.

📥 Download Datasheet

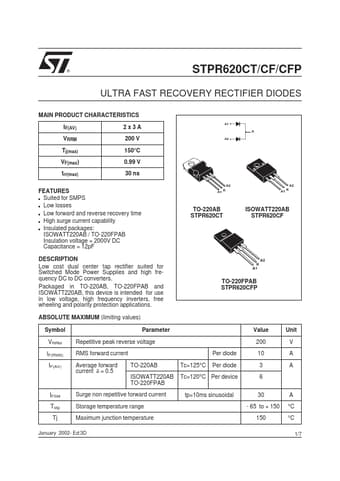

STPR620CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPR620CT, STPR620C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPR620CT, STPR620C
Manufacturer: STMicroelectronics ↗
File Size: 766.94 KB
Datasheet: STPR620C_STMicroelectronics.pdf
Description: ULTRA FAST RECOVERY RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: STPR620CT, STPR620C.
Please refer to the document for exact specifications by model.

Applications

* A2 K A1 TO-220FPAB STPR620CFP ABSOLUTE MAXIMUM (limiting values) Symbol Parameter Value Unit VRRM IF(RMS) IF(AV) Repetitive peak reverse voltage RMS forward current Per diode Average forward current δ = 0.5 TO-220AB Tc=125°C Per diode ISOWATT220AB Tc=120°C Per device TO-220FPAB 200 1
