STPS1150

1A power Schottky rectifier

STPS1150 Features

* Negligible switching losses

* Low forward voltage drop for higher efficiency and extended battery life

* Low thermal resistance

* Surface mount miniature package

* Avalanche capability

* ECOPACK2 compliant component Applications

* Switching d

STPS1150 General Description

This 150 V power Schottky rectifier is ideal for switch mode power supplies on up to 24 V rails and high frequency converters. Packaged in SMA, SMA Flat Notch and axial, the STPS1150 is optimized for use in consumer and computer applications where low drop forward voltage is required to reduce power.

STPS1150 Datasheet (352.25 KB)

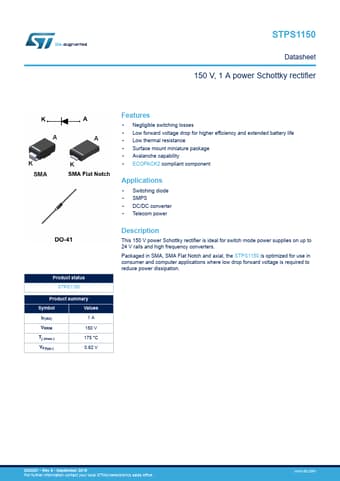

Preview of STPS1150 PDF

Datasheet Details

Part number:

STPS1150

Manufacturer:

STMicroelectronics ↗

File Size:

352.25 KB

Description:

1a power schottky rectifier.
STPS1150 Datasheet 150 V, 1 A power Schottky rectifier Product status STPS1150 Product summary Symbol Values IF(AV) 1A VRRM 150 V Tj (max.) .
