STPS130

1A power Schottky rectifier

STMicroelectronics

STPS130 Features

* Very low forward voltage drop for less power dissipation

* Optimized conduction/reverse losses trade-off which means the highest yield in the applications

* Surface mount miniature packages

* Avalanche rated

* ECOPACK2 compliant Applications

* Cordle

STPS130 General Description

Single Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters. Packaged in SMA, SMA Flat Notch or SMB, the STPS130 is ideal for use in parallel with MOSFETs in synchronous and low voltage secondary rectification. DS0933 .

STPS130 Datasheet (353.10 KB)

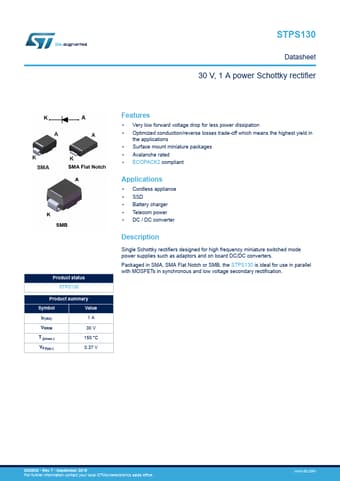

STPS130 Datasheet Preview — Preview of STPS130 PDF

Datasheet Details

Part number:

STPS130

Manufacturer:

STMicroelectronics ↗

File Size:

353.10 KB

Description:

1a power schottky rectifier.
STPS130 Datasheet 30 V, 1 A power Schottky rectifier Product status STPS130 Product summary Symbol Value IF(AV) 1A VRRM 30 V T j(max.) 150 °.
