STPS140

1A power Schottky rectifier

STMicroelectronics

STPS140 Features

* Very small conduction losses

* Negligible switching losses

* Low forward voltage drop

* Surface mount miniature packages

* Avalanche rated

* ECOPACK2 compliant Applications

* Reverse polarity protection

* Set-top box power supply

STPS140 General Description

Single chip Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA, SMA Flat Notch and SMB, the STPS140 is ideal for use in surface mounting and used in low voltage, high frequency inverters, free-wheeling and polarity protection applicatio.

STPS140 Datasheet (354.93 KB)

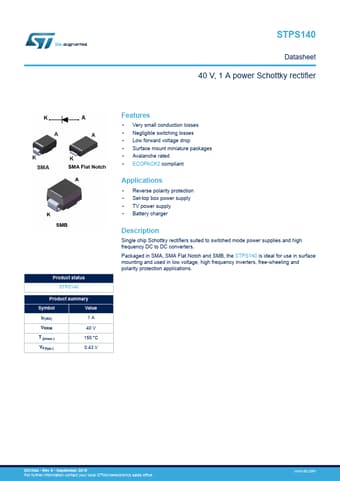

STPS140 Datasheet Preview — Preview of STPS140 PDF

Datasheet Details

Part number:

STPS140

Manufacturer:

STMicroelectronics ↗

File Size:

354.93 KB

Description:

1a power schottky rectifier.
STPS140 Datasheet 40 V, 1 A power Schottky rectifier Product status STPS140 Product summary Symbol Value IF(AV) 1A VRRM 40 V T j(max.) 150 °.
