STPS140-Y Automotive power Schottky rectifier

STPS140-Y Description

STPS140-Y Automotive power Schottky rectifier .
Single chip Schottky rectifiers suited to Switched Mode Power Supplies and high frequency DC to DC converters.

STPS140-Y Features

* Very small conduction losses
* Negligible switching losses
* Low forward voltage drop
* Surface mount miniature packages
* Avalanche capability specified
* AEC-Q101 qualified

STPS140-Y Applications

* SMA (JEDEC DO-214AC) STPS140AY SMB (JEDEC DO-214AA) STPS140UY Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (max) Value 1A 40 V 150 °C 0.5 V December 2010 Doc ID 17973 Rev 1 1/9 www. st. com 9 Characteristics 1 Characteristics STPS140-Y Table 2. Absolute Ratings (limiting values)

📥 Download Datasheet

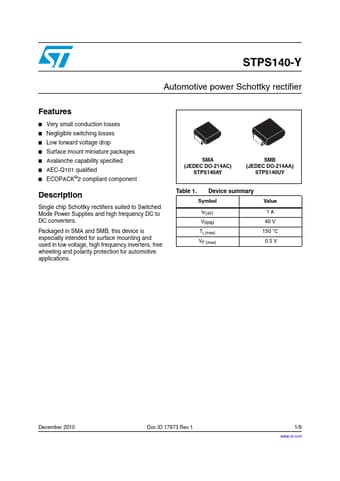

Preview of STPS140-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
