STPS20120CTN Datasheet - STMicroelectronics

power Schottky rectifier

STPS20120CTN Features

* High junction temperature capability

* Good trade-off between leakage current and forward voltage drop

* Low leakage current

* Avalanche capability specified

* ECOPACK®2 compliant component for DPAK on demand November 2016 This is information on a product in full production.

STPS20120CTN General Description

This dual diode Schottky rectifier is suited for high frequency switched mode power supplies. Packaged in DPAK, TO-220AB, TO-220AB narrow leads and I²PAK, this device is intended to be used in notebook and LCD adaptors, desktop SMPS, providing in these applications a margin between the remaining vol.

STPS20120CTN Datasheet (270.65 KB)

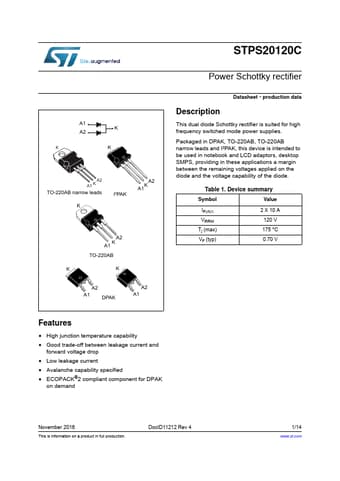

Preview of STPS20120CTN PDF

Datasheet Details

Part number:

STPS20120CTN

Manufacturer:

STMicroelectronics ↗

File Size:

270.65 KB

Description:

Power schottky rectifier.
$ $ . . . $ $ . 72$%QDUURZOHDGV . ,ð3$. $ $. $ $ . 72$% . . $ $ '3$. $ $ STPS20120C Power Schottky rectifier Datas.
